AF5 Aluminium Roof Edge External Angle 110mm X 64mm

Our T-Trims should be fixed using Galvanised nails or screws at no more than 300mm apart, making sure the ends of each length are firmly secured. A minimum of 6 fixings per length is recommended. We suggest you leave a gap of 2mm between each length to allow for expansion.

T-Trim roof edge trim is manufactured from extruded aluminium alloy to BS 1474, Quality 6063/T6 (AlMgSi 0.5 F22). This provides a resilient finish that is not affected by atmospheric pollution and will not rust.

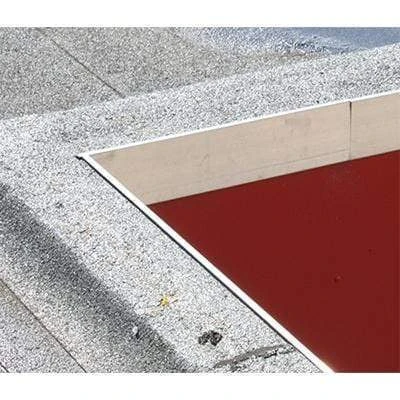

Pre-formed corners eliminate the need for on-site mitre cutting. They also ensure a neat, accurate and watertight detail at any change in roof edge direction.

*ONLY COMPATIBLE WITH TRIMS OF THE SAME BRAND*

Application

For use with T-Trim roof edge trims.

Features

High Strength to Weight Ratio.
Completely maintenance free.
Economical and really simple to install, maintenance free edge trim system suitable for most built-up felt, mastic, asphalt and EPDM flat roof applications.

Product Specification

Brand: Ryno
Colour: Mill Finish
Compatible Roof Material(s): Felt
Guarantee: 10 years
Location: External
Material: Aluminium
Product Type: Corners
Profile: AF5
Usage: External Corner
